The perfect tool for reducing costs and increasing work speed.
One man supervision of several straight-line welding machines leads to lower costs.

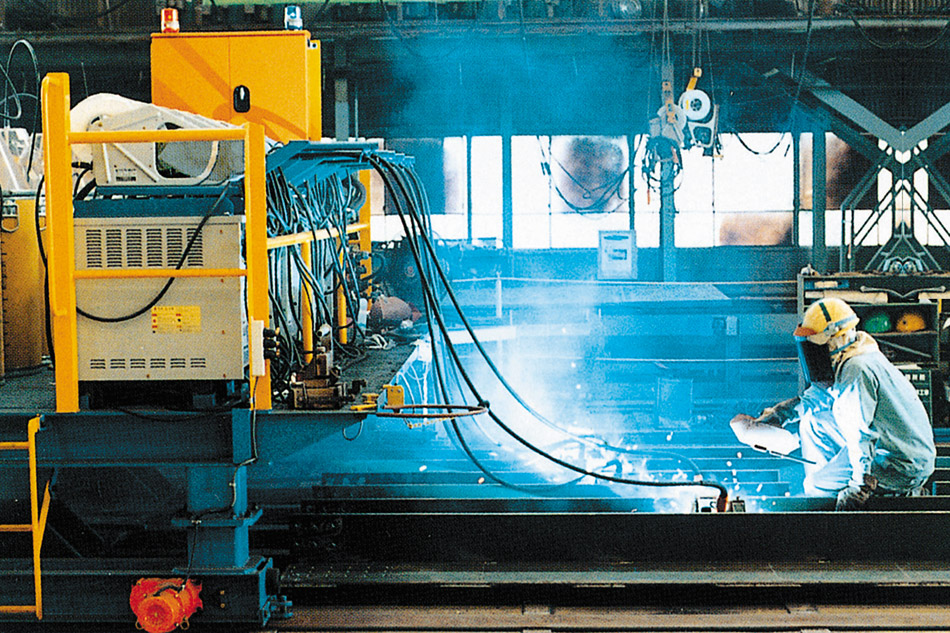

- Rationalize direct welding for long rib materials such as bridge, iron frame and ship blocks.
- Self-propelled mobile automatic welding truck. Designed to load CO2 welding machines and filler wire holders.
- Maintains distance with welding device. Automatic tracking system (optional) removes cable slack and maintains cable tension.
- Different truck heights available to suit different work types.
- One man supervision of several straight-line welding machines leads to lower costs.
- Possible to load 5 to 22 welding machines. This makes machine suitable for a variety of tasks and rationalizes welding operations.

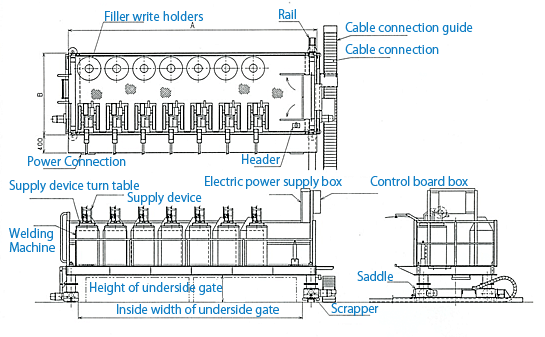

Specifications
| Model Number | B-40 | B-50 | B-60 | B-80 | B-100 | B-120 | B-150 | |
|---|---|---|---|---|---|---|---|---|
| Inside width of underside gate (mm) | 4,000 | 5,000 | 6,000 | 8,000 | 10,000 | 12,000 | 15,000 | |
| Height of underside gate (mm) | 600 | 600 | 600 | 700 | 750 | 750 | 750 | |
| Maximum number of welding machines | 5 | 7 | 8 | 11 | 14 | 18 | 22 | |
| Maximum loading weight (kg) | 2,000 | 3,000 | 3,500 | 4,500 | 5,500 | 7,000 | 9,000 | |
| Bridge device weight (kg) | 1,800 | 2,700 | 3,200 | 4,100 | 5,000 | 6,300 | 8,100 | |
| Running distance (m) | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
| A x B (mm) | 4,550 × 1,850 |
5,550 × 1,850 |
6,550 × 1,850 |
8,600 × 2,400 |
10,700 × 2,600 |
12,700 × 2,600 |
15,800 × 2,600 |
|
| Running Speed (m/min) | 50Hz | 13 | 13 | 13 | 14 | 10 | 10 | 10 |
| 60Hz | 16 | 16 | 16 | 17 | 12 | 12 | 12 | |
| Running Options | Single sided self-propelled system | |||||||
| Control systems | Wired push button pendant control | |||||||
Option

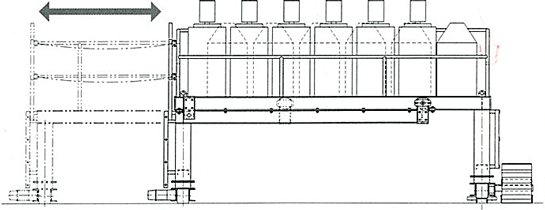

- Wide sliding system
- Extend running distance more than 15m
- Automatic tracking system
- Wireless remote control
- Speed control
